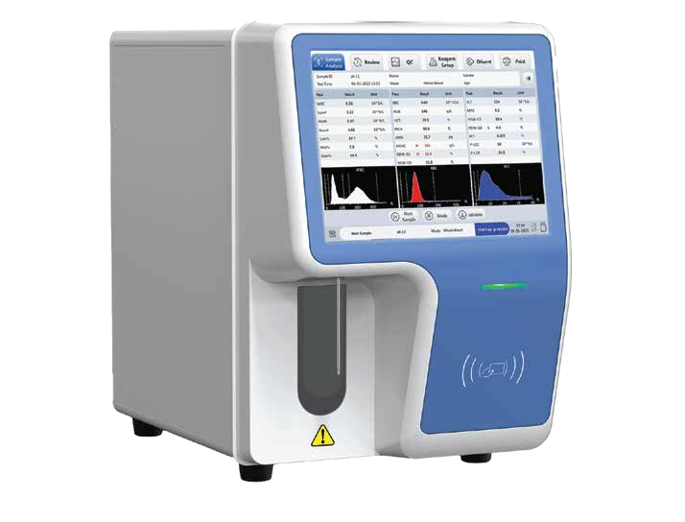

Automated Hematology Analyzer

Discover the highly efficient Automated Hematology Analyzer, engineered for precise and rapid blood sample testing, ideal for clinical diagnostics. With an intuitive user-friendly interface and a sleek, compact design, this analyzer seamlessly integrates into Primary Health Centers, optimizing workflow. Its advanced technology ensures reliable results every time, making it an indispensable addition to your lab.

Highlights of the system

• Easy maintenance

  • Two reagent system with low running costs.

  • Auto clog prevention design.

  • Using only one maintenance reagent.

• Effective result analysis: Real-time display of reaction curve.

• High accuracy

  • Bidirectional stereoscopic back-swirling design:

    prevent re-circulation of cell particles resulting

    in repeat count.

  • Digital filtering algorithm: Automatic

    identification of interference signal to

    correct the symmetry of RBC histogram.

  • Pulse recognition algorithm.

• Easy operations

  • 10.4 inches touch screen with vivid colors and

    intuitive interface.

  • Small footprint, lyse inside the machine.

• Improved supporting systems:

  Large storage of 600,000 results.

Technical Details

• Principle: Electrical impedance and Colorimetry

• Throughput: 60 samples/hour

• Sample volume: 9 μL (whole blood mode), 20 μL (pre-diluted mode)

• Parameters: 22 parameters+ 3 histogram

  • WBC, Lym#, Mid#, Gran#, Lym%, Mid%, Gran%

  • RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV

  • PLT, MPV, PDW-CV, PDW-SD PCT, P-LCC, P-LCR

• Calibration: Manual and Auto-calibration

• Sample type: Capillary whole blood, Venous whole blood, Pre-diluted blood

• Quality control: L-J and X-B floating mean

• Storage: 600,000 test records

• Power: 100V-240V (50/60Hz)

• Dimensions: 280 mm (L)*460 mm (W)*400 mm (H)

• Weight: 18Kg

• Display: 10.4" color LED touch screen
